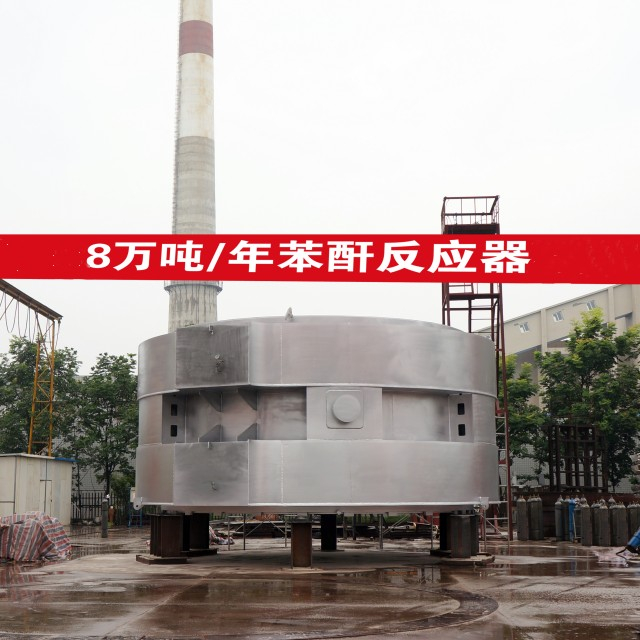

HW Phthalic Anhydride Reactor

  • Tubular fixed-bed reactor
  • O-Xylene method to produce phthalic anhydride
  • Naphthalene method to produce phthalic anhydride
  • Radial temperature difference ≤ ±2℃
  • Axial temperature difference < 4℃
Capacity:
Process:
Availability:
  • HW-PAN-G2
  • HW
  • HW-PAN-G2

Phthalic Anhydride Reactor Unit

Phthalic Anhydride Reactor Introduction

HW is an expert in design and manufacturing chemical reactors.

HW has successfully delivered more than 60 sets of 5,000-80,000 TPA Phthalic Anhydride Reactor units. HW can also design and manufacture even larger Phthalic Anhydride Reactors according to Clients' needs.

HW Phthalic Anhydride Reactor unit is a non-standard equipment built with ASME material. It is filled with catalyst in the heat exchange tubes, which use molten salt as the refrigerant to bring out the heat generated by oxidation reaction. It is of shell and tube structure. The process gas goes through the tube side. The molten salt goes through the shell side. Auxiliary equipment is mounted on the outside.

In 2018, HW successfully delivered its first 80,000 TPA Phthalic Anhydride Reactor unit to client. It enabled the client to  keep robust growth at agreeable margin and take a spectacular comback in post-COVID times.

In 2020, the market took a serious hit by the pandemic. However, HW managed to accomplish the performance of the second contract of its 80,000 TPA Phthalic Anhydride Reactor unit against all disruptions.

With a group of dedicated engineers and a wide network of reliable suppliers, HW demonstrates practical competency in realizing clients' goals.

Phthalic Anhydride Reactor Configuration

All HW's reactors are sold in unit which include all the necessary accessories to operate the reactor. A typical HW Phthalic Anhydride Reactor unit includes the following equipment:

  • Phthalic anhydride reactor

  • Salt bath cooler

  • Superheater

  • Salt pump

  • Salt regulating valve

  • Salt balancing valve

  • Electric heater

  • Evaporator

  • Steam drum

  • Motor

  • Rupture disc

  • Static mixer

  • Flame arrestor

  • Nozzles

  • Electric actuator
