HW Methyl Methacrylate Reactor

  • Tubular fixed-bed reactor
  • To produce crude MMA
  • Radial temperature difference ≤ ±2℃
  • Axial temperature difference < 4℃
Capacity:
Availability:
  • HW-MMA-G1
  • HW
  • HW-MMA-G1

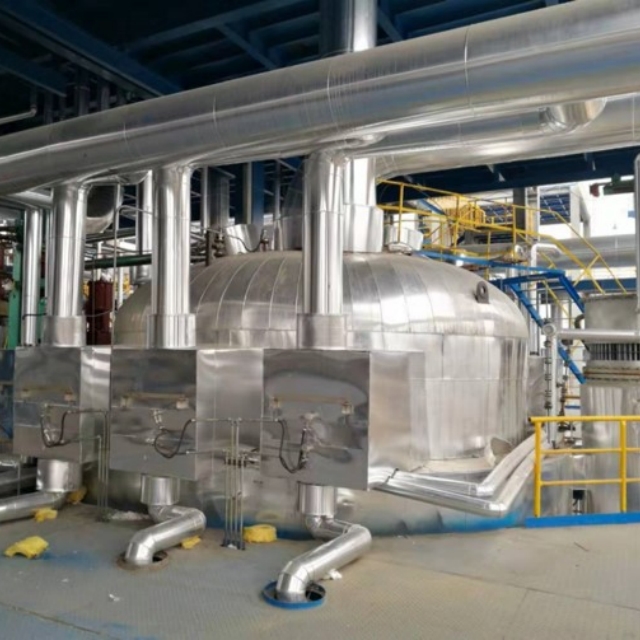

Methyl Methacrylate Reactor Unit

Methyl Methacrylate Reactor Introduction

At present, HW has completed the design of a 120,000 TPA MMA reactor, with a tubesheet diameter of 9.2m, more than 55000 conversion tubes and a unit weight of more than 500 tons, and a 50,000 TPA MMA reactor unit with a tubesheet diameter of 8.9m. By now, two sets of 50,000 TPA MMA reactors have been delivered and put into operation.

Methyl Methacrylate Reactor Configuration

All HW's reactors are sold in unit which include all the necessary accessories to operate the reactor. A typical HW Methyl Methacrylate Reactor unit includes the following equipment:

  • Methyl methacrylate reactor

  • Salt bath cooler

  • Superheater

  • Salt pump

  • Salt regulating valve

  • Salt balancing valve

  • Electric heater

  • Evaporator

  • Steam drum

  • Motor

  • Rupture disc

  • Static mixer

  • Flame arrestor

  • Nozzles

  • Electric actuator
